Product
제품소개
RM/TM모델(천정취부형)

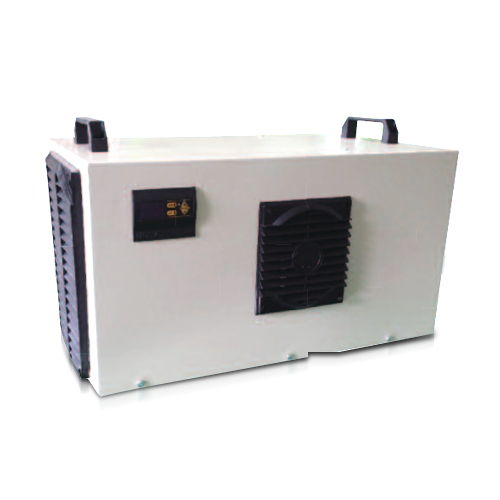

제품 상세소개
제품 사양
| MODEL | DCA-1000TM | RATED CURRENT STA-RUN [A] | 17.3-3.1/17.3-3.3 I 16.9-2.9 I 17.1-3.1 | |
|---|---|---|---|---|
| VOLTAGE [V] | 220 | USE ENVIRONMENT | 20~45℃, 70% RH | |
| FREQUENCY [Hz] | 50/60 I 50 I 60 | W*H*D [mm] | 615x350x384 | |
| CAPACITY | kcal/h | 830/1000 I 1000 I 1000 | WEIGHT [kg] | 33.3 |
| BTU/h | 3300/4000 I 4000 I 4000 | EXTERNAL AIRFLOW [㎥/h-CFM] | ||
| W | INTERNAL AIRFLOW [㎥/h-CFM] | |||
| POWER CONSUMPTION [W] | 657/755 I 620 I 730 | REFRIGERANT | R134a/R410a | |

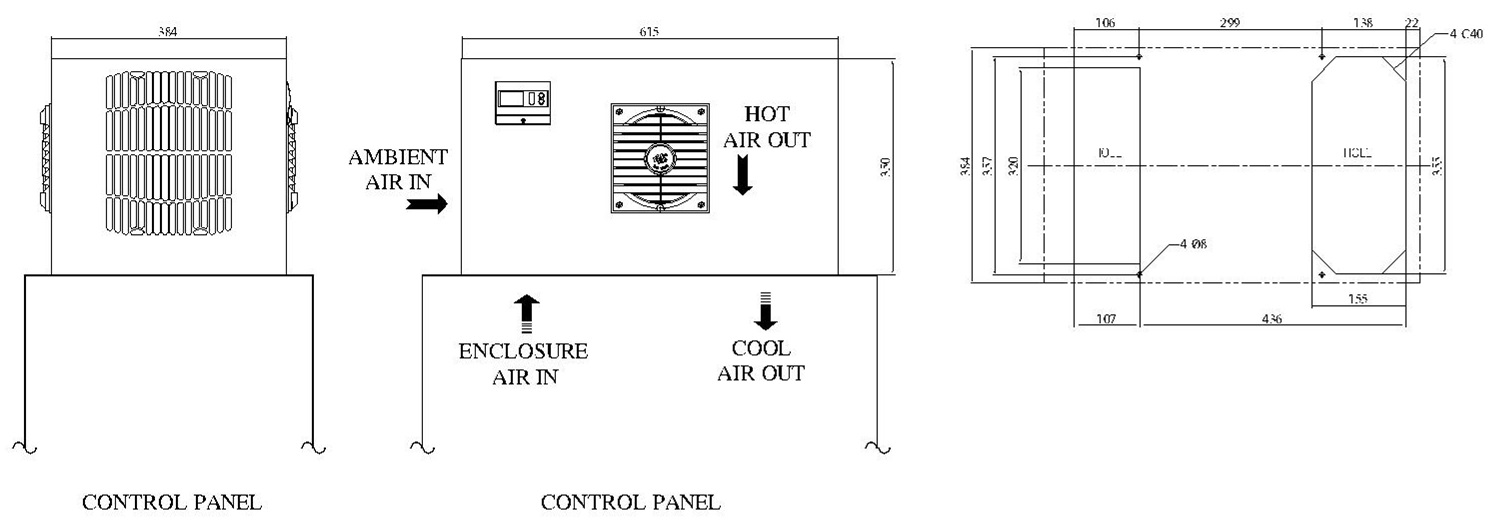

제품 취부도
- SIDE VIEW
- FRONT VIEW
- MOUNTING CUT-OUT
