Product
제품소개

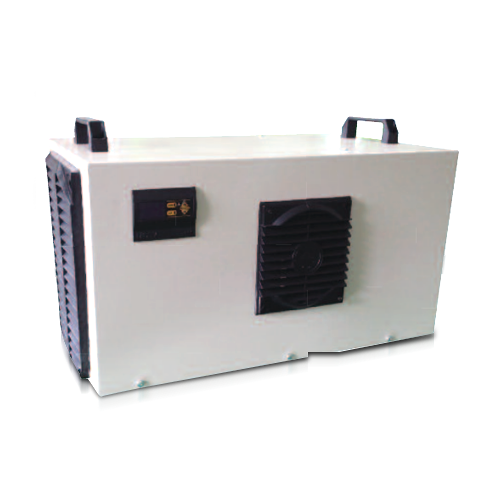

RM/TM모델(천정취부형)
제품 상세소개
제품 사양
| MODEL | DCA-750TM | RATED CURRENT STA-RUN [A] | 6.2-2.5/6.1-2.5 I 6.0-2.2 I 6.1-2.3 | |
|---|---|---|---|---|
| VOLTAGE [V] | 220 | USE ENVIRONMENT | 20~45℃, 70% RH | |
| FREQUENCY [Hz] | 50/60 I 50 I 60 | W*H*D [mm] | 615x350x384 | |
| CAPACITY | kcal/h | 620/750 I 750 I 750 | WEIGHT [kg] | 28.3 |
| BTU/h | 2500/3000 I 2750 I 3000 | EXTERNAL AIRFLOW [㎥/h-CFM] | ||
| W | INTERNAL AIRFLOW [㎥/h-CFM] | |||
| POWER CONSUMPTION [W] | 522/575 I 480 I 540 | REFRIGERANT | R134a | |
제품 취부도
- SIDE VIEW
- FRONT VIEW
- MOUNTING CUT-OUT
