Product
제품소개

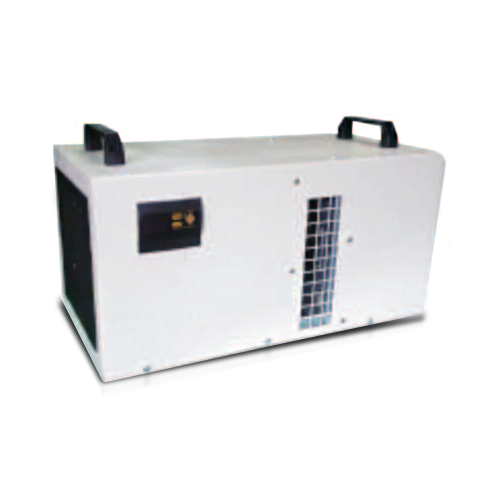

RM/TM모델(천정취부형)
제품 상세소개
제품 사양
| MODEL | DCA-250TM | RATED CURRENT STA-RUN [A] | 4.4-1.6 I 4.8-1.3 | |
|---|---|---|---|---|
| VOLTAGE [V] | 220 | USE ENVIRONMENT | 20~45℃, 70% RH | |
| FREQUENCY [Hz] | 50 I 60 | W*H*D [mm] | 500x214x340 | |
| CAPACITY | kcal/h | 250 I 250 | WEIGHT [kg] | 19.0 |
| BTU/h | 1000 I 1000 | EXTERNAL AIRFLOW [㎥/h-CFM] | ||
| W | INTERNAL AIRFLOW [㎥/h-CFM] | |||
| POWER CONSUMPTION [W] | 283 I 261 | REFRIGERANT | R134a | |

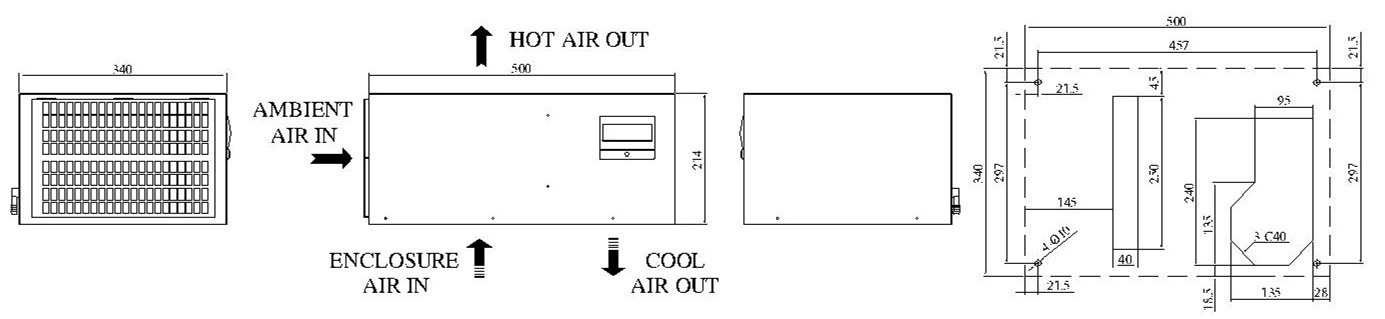

제품 취부도
- SIDE VIEW
- FRONT VIEW
- MOUNTING CUT-OUT
- SIDE VIEW
- FRONT VIEW
- MOUNTING CUT-OUT
