Product
제품소개
SE/SI모델(측면취부형)
제품 상세소개
제품 사양
| MODEL | SMA-1000 | RATED CURRENT STA-RUN [A] | 12.0-1.8/12.0-1.8 | |
|---|---|---|---|---|
| VOLTAGE [V] | 230 | USE ENVIRONMENT | 20~50℃, 70% RH | |
| FREQUENCY [Hz] | 50/60 | W*H*D [mm] | 339x461x185 | |
| CAPACITY | kcal/h | 250 | WEIGHT [kg] | 21 |
| BTU/h | 1000 | EXTERNAL AIRFLOW [㎥/h-CFM] | ||
| W | INTERNAL AIRFLOW [㎥/h-CFM] | |||
| POWER CONSUMPTION [W] | 414 | REFRIGERANT | R134a | |

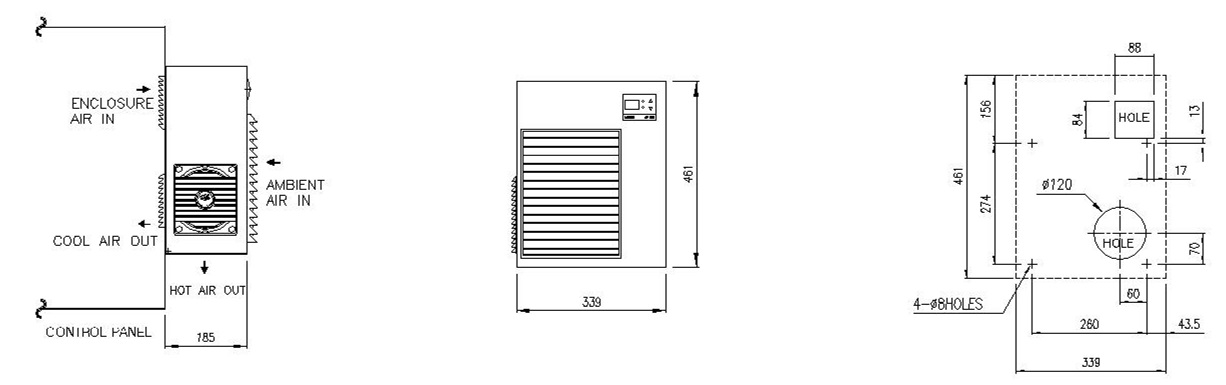

제품 취부도
- SIDE VIEW
- FRONT VIEW
- MOUNTING CUT-OUT
